DMX 4-Channel Dimmer Pack

Table of contents

• Fuses
• Source
• Images

Inventory

5

Features

• Dimming control over 4 power outlets (one per channel)
• 10A per-channel replaceable fuses (yes, the image says 5A. I replaced them).

Only useful for dimming incandescent lights.

Dimmers still allow some minor current flow in the channel off state, so LEDs or any other small loads will still behave as powered (called “ghosting”).

Fuses

Due to electrical damage, many of the fuse sockets were replaced for internal ones
(see an example in images)

10A 10amp 250V 5x20mm Fast-Blow Glass Fuses

Source

B & H Photo Video Item Listing

Manual

Images

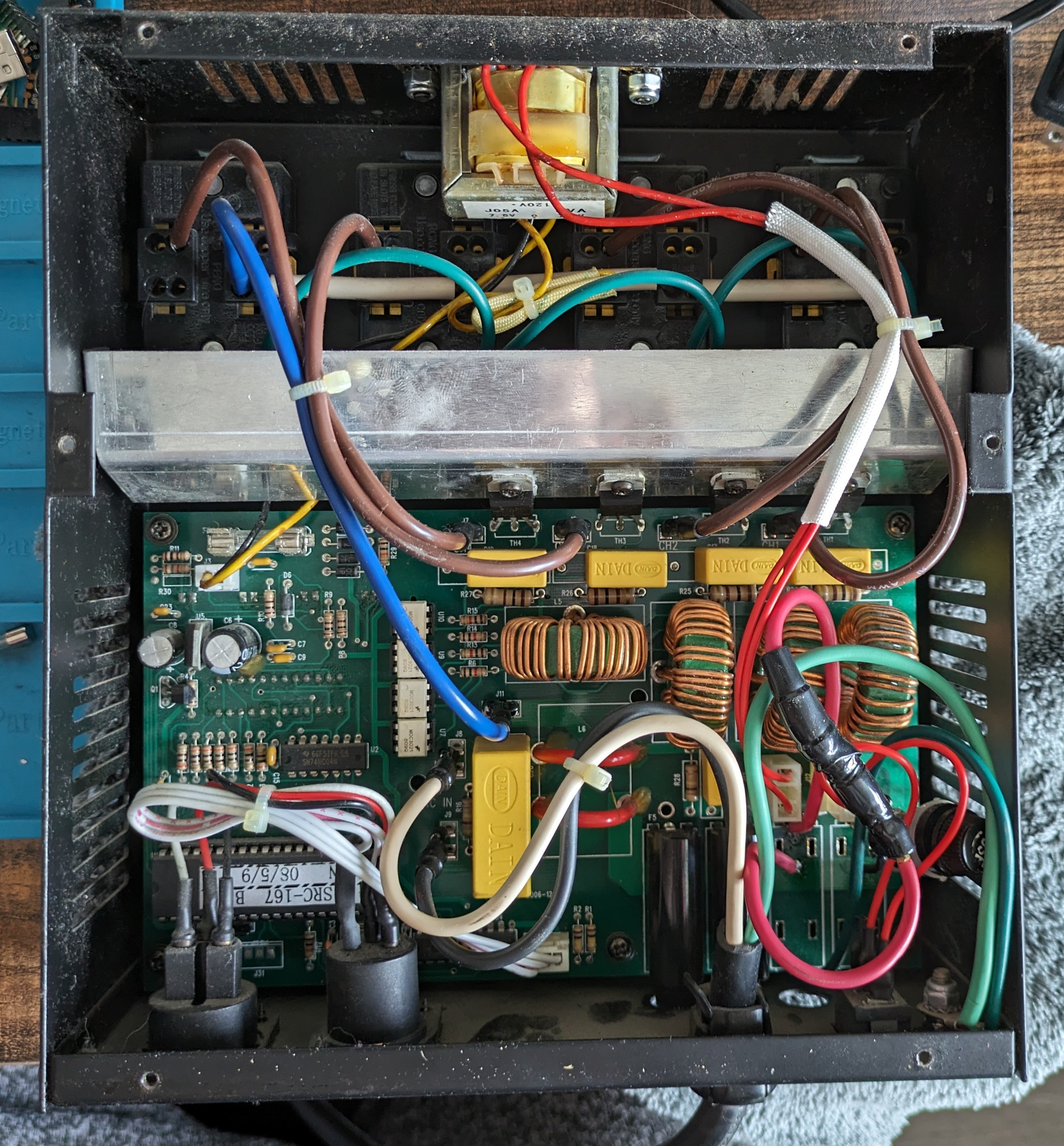

Disassembled, with internal fuse sockets (red wires, bottom right)
